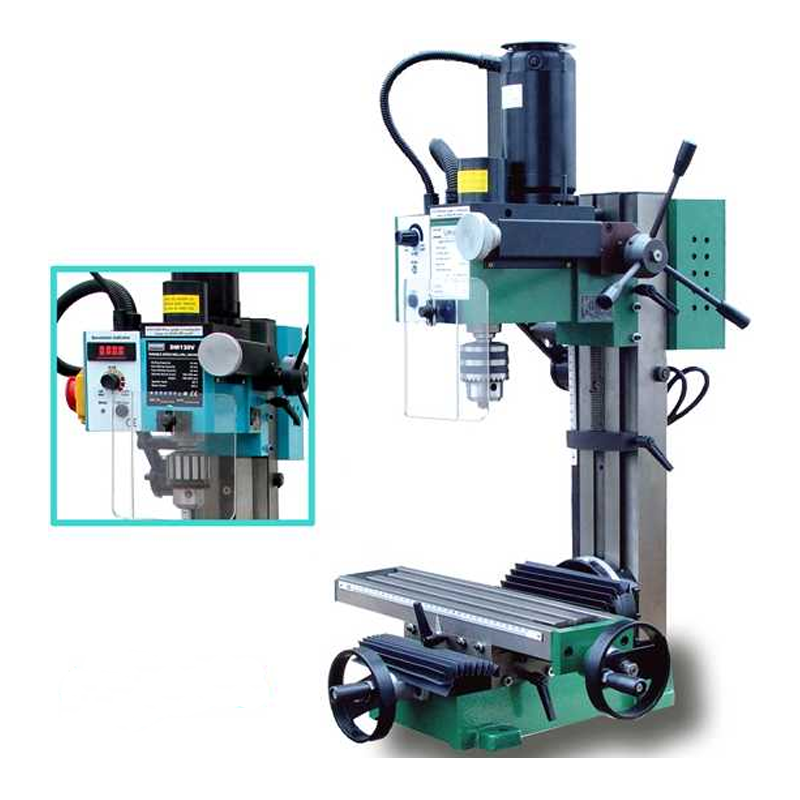

Bench Drilling & Milling Machine JLZM13


A) Quality table mill-drill machine for the small workshop and home hobby

B)The mill-drill head tilts to 45° in both directions

C) 2 speed gearbox for increased torque

D) Powered by a 500w variable speed controlled DC motor

E) Work table in longitudinal /cross feeding by manual

F) The step D.C. motor is controlled and program order against user requirement

G) All slides utilize dovetail construction for maximum rigidity

H) Ground table with 'T ' slots

I)A fine manual down feed is incorporated for milling operation

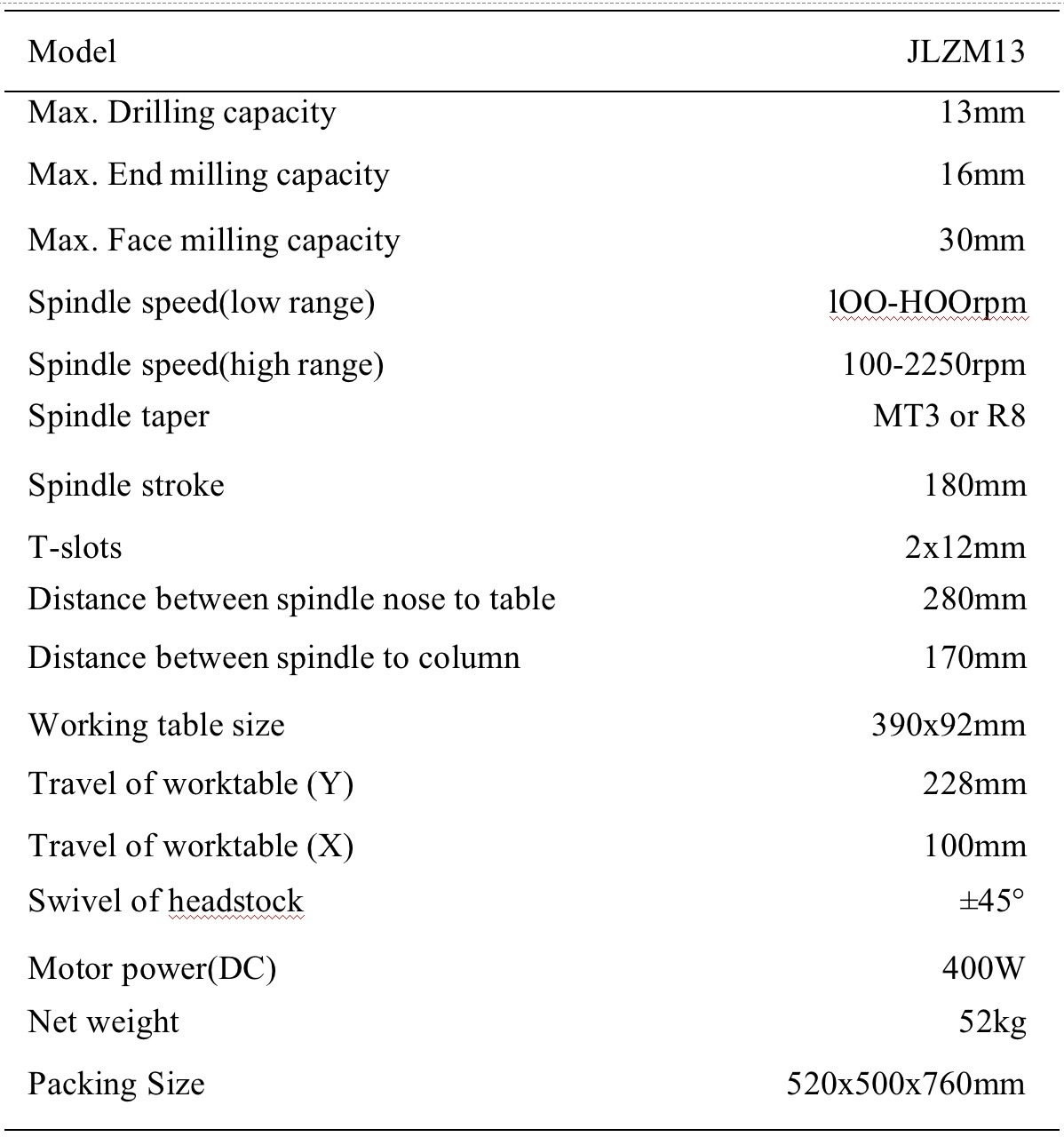

Main specifications:

Bench Drilling & Milling Machine JLZM13


In plywood box/ pallet


Usually the delivery time takes 60 days. But it also depends on different machines with different configurations. Please contact us to confirm it is in stock or not.


We prefer to do 100% T/T (30% T/T in advance, 70% T/T before shipment)


The warranty period is general 13 months after B/L date. During the warranty period, we will provide free replacement parts (EXW) which caused by machine itself quality problems. Meanwhile, the machine should be under normal operation according to Operation Manual.(Except for improper operation or man-made damaged by buyers)
