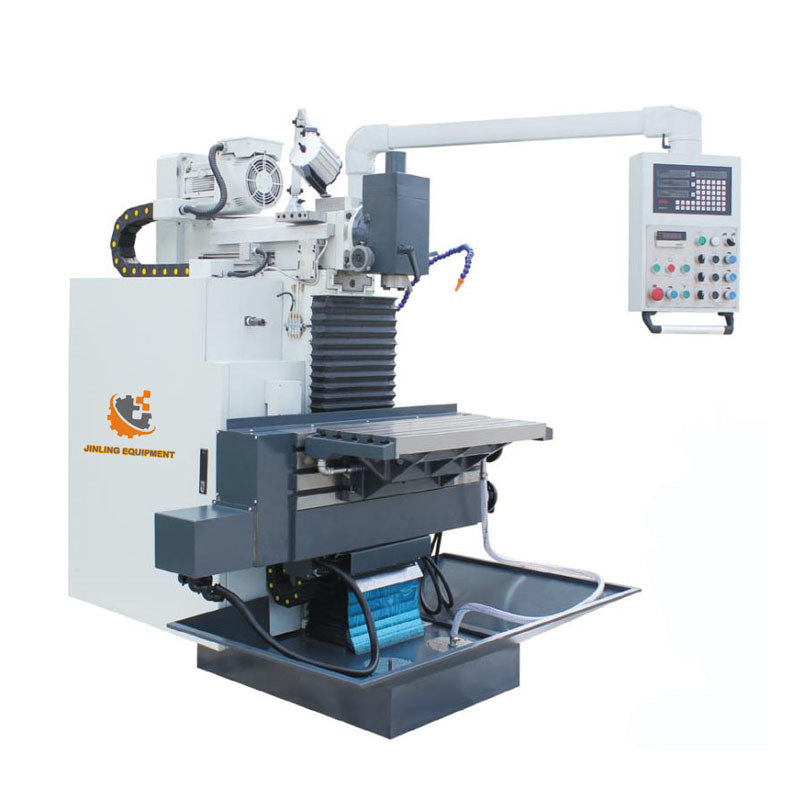

Universal tool milling machine JLM8132

Universal tool milling machine JLM8132

Features:

A、 Ball screws and servo motors adopted on X Y Z 3-axis for easy and precise feeds.

B、 Infinitely variable vertical cutting head with a swivel ±90°and the spindle controlled by variable frequency motor.

C、 Electronic handwheel adopted on X Y Z 3-axis ,easy operating.

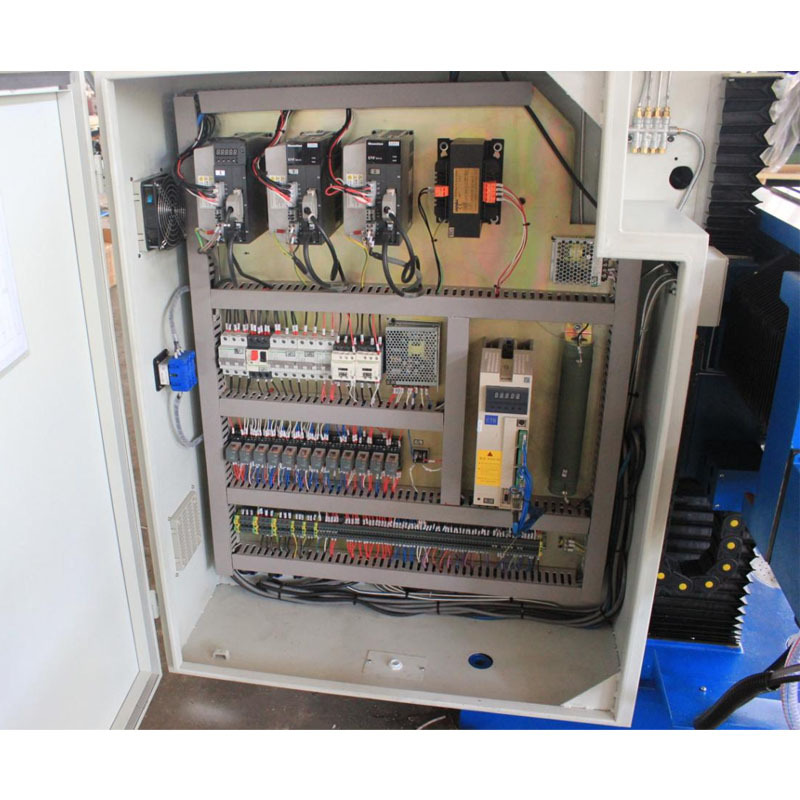

       D、 Automatic oil lubrication, cooling system,Chip collector tray,CE                         Schneider Electric are standard.

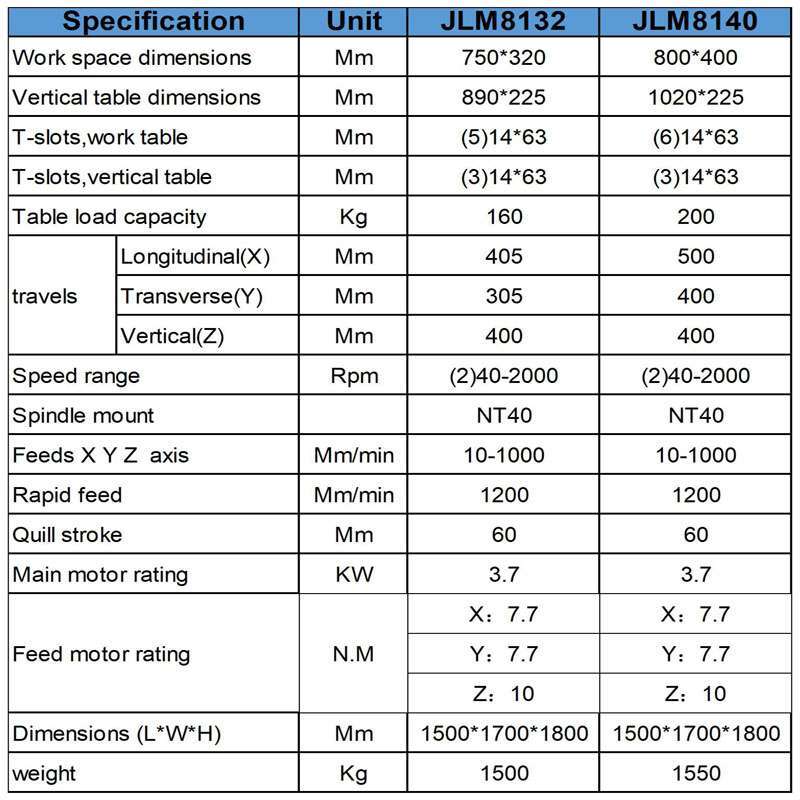

Main specifications:

Packing:

In plywood box/ pallet

Delivery

Usually the delivery time takes 60 days. But it also depends on different machines with different configurations. Please contact us to confirm it is in stock or not.

Payment

We prefer to do 100% T/T (30% T/T in advance, 70% T/T before shipment)

Warranty

The warranty period is general 13 months after B/L date. During the warranty period, we will provide free replacement parts (EXW) which caused by machine itself quality problems. Meanwhile, the machine should be under normal operation according to Operation Manual.(Except for improper operation or man-made damaged by buyers)
