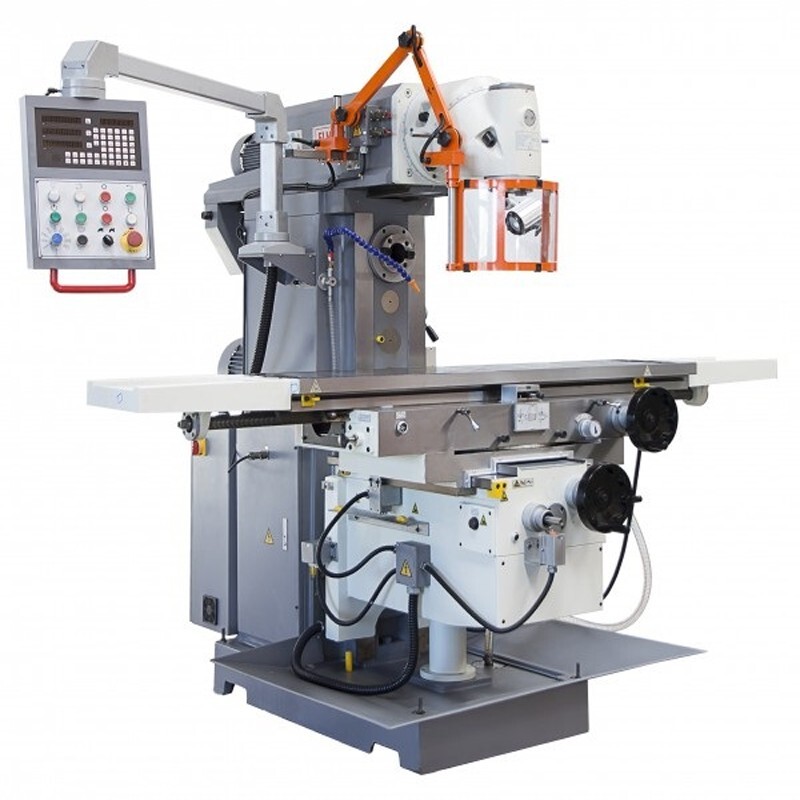

Universal milling machine JLM6436C

Universal milling machine JLM6436C

Features

•Extremely rigid machine bed made of  high-strength HT-200 cast-iron with heavy ribbing.
• Precision-ground guideways with hardened surfaces for long-term accuracy and wear-resistance.
• Large work area of 1600 x 360 mm and up to 350 kg table load capacity.
• Quiet, precision-made headstock gears with hardened and ground gears.
• Universal milling head can realize fast conversion between vertical milling and horizontal milling.
• By combining both swivel levels, almost any spatial angle can be set.
• One powerful servo motor allows infinite adjustment of the feed on all 3 axes.
• Control panel swings out to either side and features an integrated position indicator.
• 5.5 kW main drive guarantees high torque.
• Coolant system and chip tray are Included.

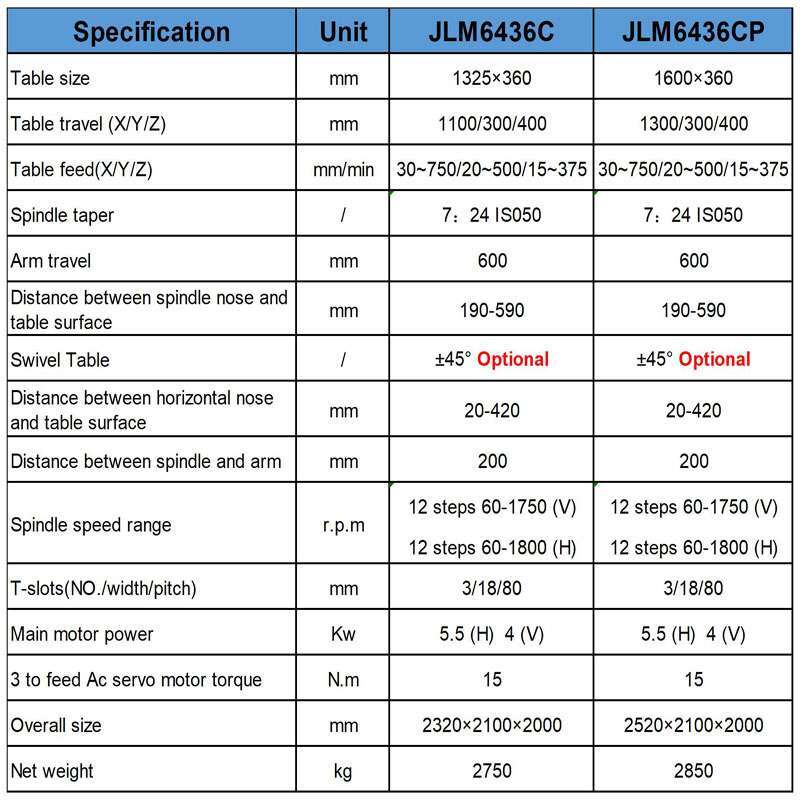

Main specifications:

Packing:

In plywood box/ pallet

Delivery

Usually the delivery time takes 60 days. But it also depends on different machines with different configurations. Please contact us to confirm it is in stock or not.

Payment

We prefer to do 100% T/T (30% T/T in advance, 70% T/T before shipment)

Warranty

The warranty period is general 13 months after B/L date. During the warranty period, we will provide free replacement parts (EXW) which caused by machine itself quality problems. Meanwhile, the machine should be under normal operation according to Operation Manual.(Except for improper operation or man-made damaged by buyers)
