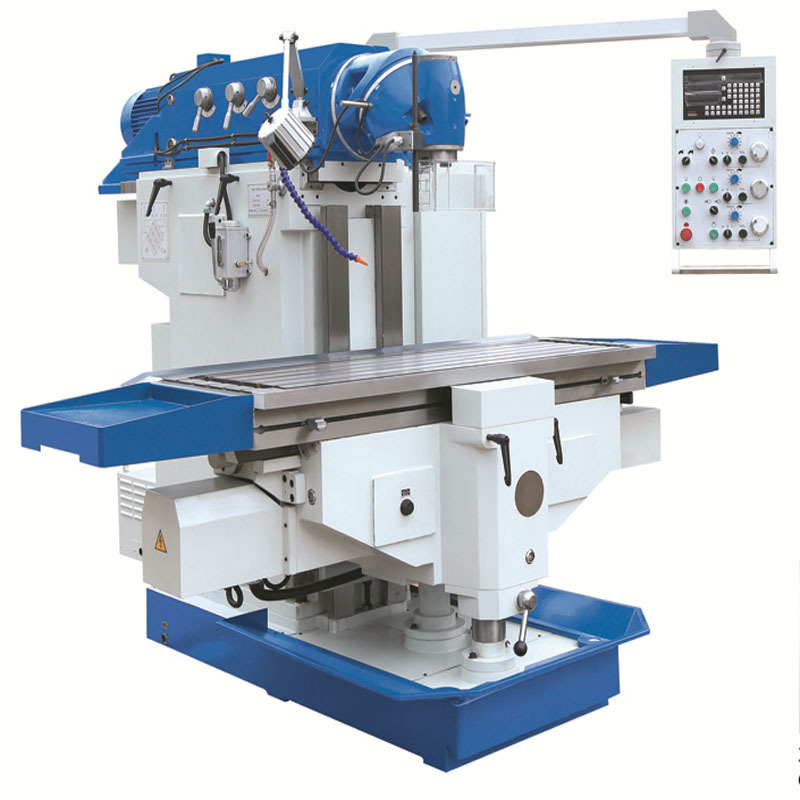

Milling machine JLM5746

Milling machine JLM5746

Features:

a、Table 3 axes with ball screws, high precision

b、Table feeding with 3 separate servo motors, variable speeds, not interfere each other,high reliability,easy to operate

c、Mechanical change speeds in head stock, powerful milling

d、Table with an extra supporting column, big load, high accuracy

e、able with an extra supporting column, big load, high accuracy

f、It can mill any angle surface through front half-sphere by                    swivelling milling head。

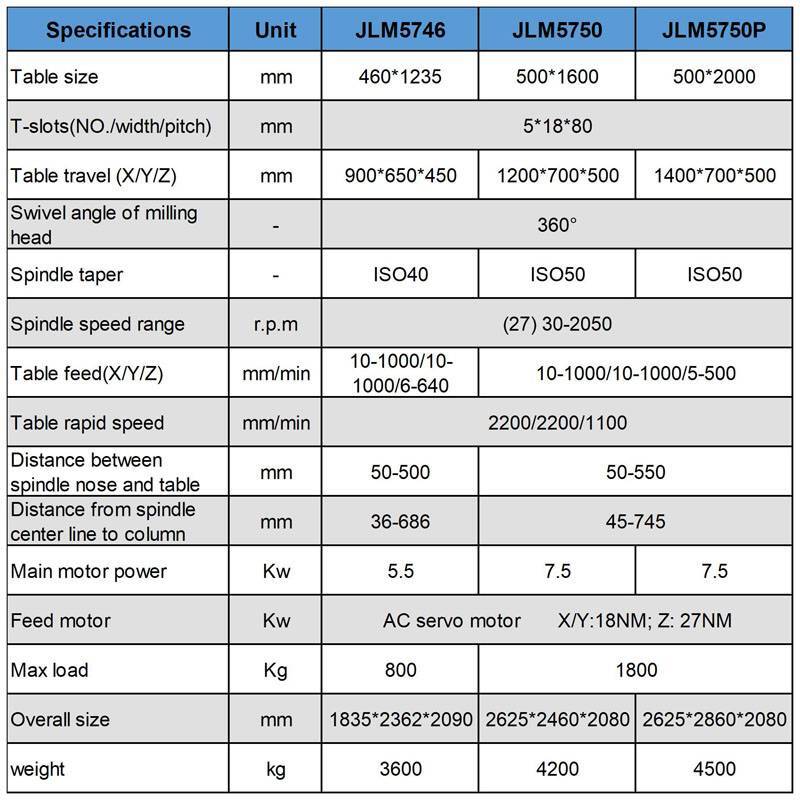

Main specifications:

Packing:

In plywood box/ pallet

Delivery

Usually the delivery time takes 60 days. But it also depends on different machines with different configurations. Please contact us to confirm it is in stock or not.

Payment

We prefer to do 100% T/T (30% T/T in advance, 70% T/T before shipment)

Warranty

The warranty period is general 13 months after B/L date. During the warranty period, we will provide free replacement parts (EXW) which caused by machine itself quality problems. Meanwhile, the machine should be under normal operation according to Operation Manual.(Except for improper operation or man-made damaged by buyers)
